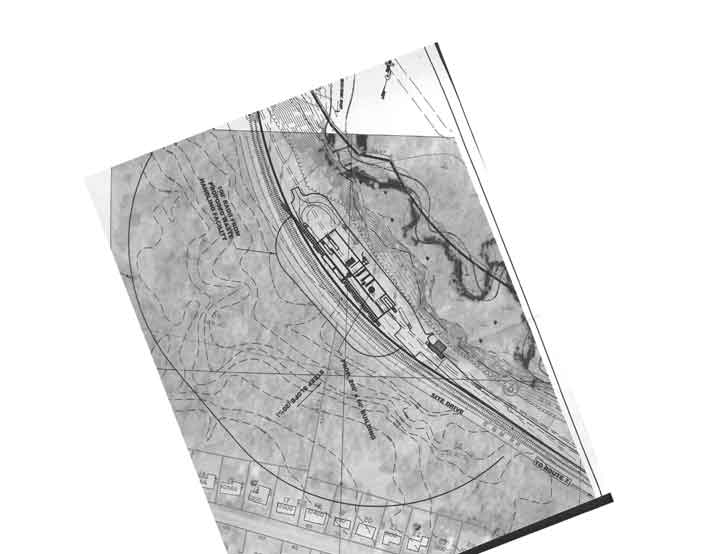

<-- Here is part of the same plan rotated to overlay on a Massachusetts GIS aerial Photograph

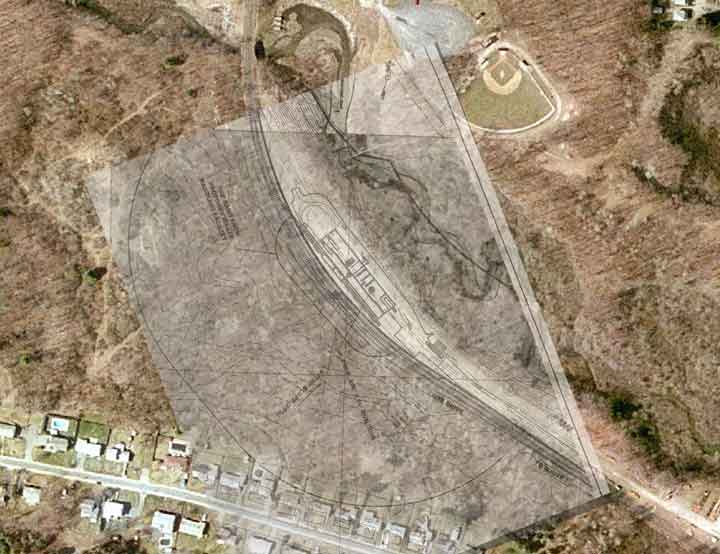

This image is an overlay of the plan shown above and a Massachusetts GIS aerial photograph. The two were registered by superimposing the railroad tracks of both images. The two sets of tracks registered perfectly along their entire length. But note that the buildings from the SK Design Group plan do not coincide with the buildings from the aerial photo.

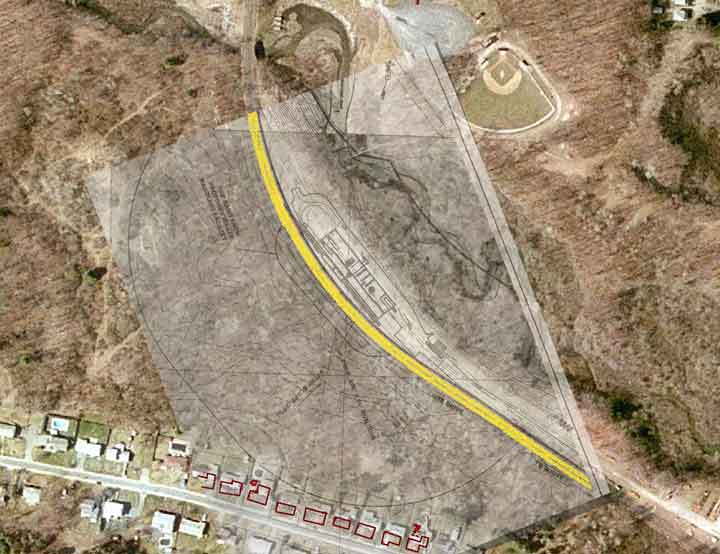

This image shows the same overlay with the buildings from the SK Design Group plan outlined in red and the tracks highlighted in yellow.

The nine houses closest to the polygon have also changed shape. Note that two of the houses (at the bottom of the image and indicated by BEAT’s green arrows) are L-shaped on the aerial photo and rectangular on the SK Design Group plan. The additions facing the polygon are missing, thereby increasing the apparent distance between the proposed building and the houses. Members of BEAT recently visited the houses to confirm that the houses are in fact L-shaped currently. --->

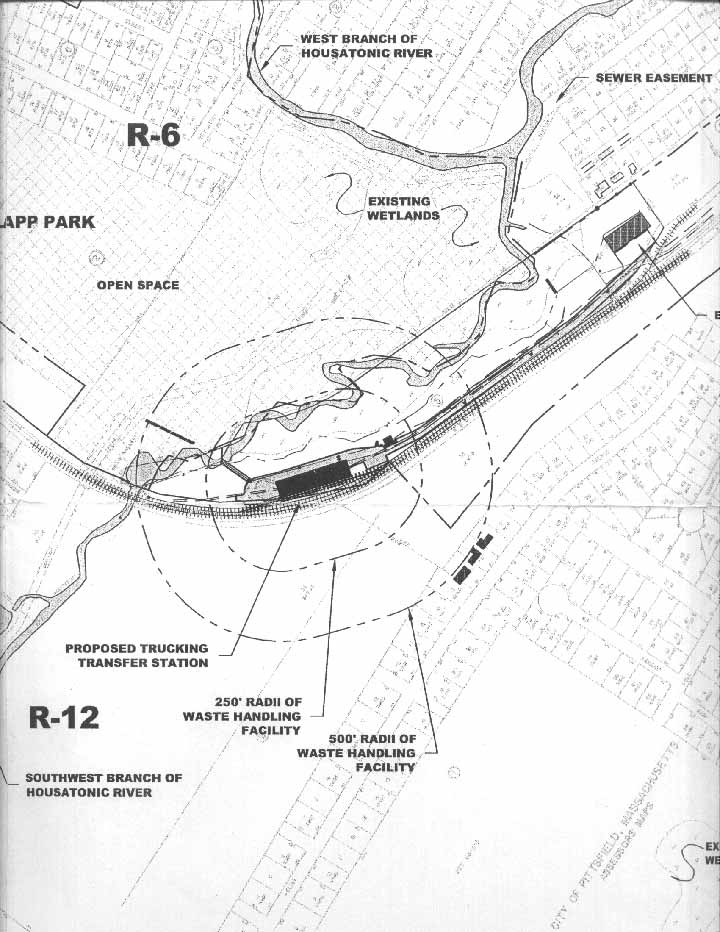

Interestingly, on another SK Design plan submitted at the same time as the above plan, but not intended primarily to show distance between houses and facility, the houses are again in the proper location and again have their L-shaped additions intact.

(SK Design Group's Water Resource and Land Use Site Plan)
